Description

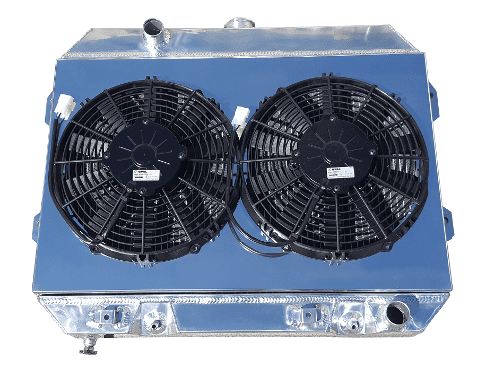

Datsun 240Z Radiator Combo Kit Specs:
2-Row Core | 400hp Rating
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 18.5″ tall (19.75″ with cap) x 27.5″ (with brackets)
Core: 13.75″ tall x 23″ wide x 1.75″ thick
Inlet: 1.25″ driver’s side
Oulet: 1.25″ passenger side
Tanks: 2.25″ thick
Tubes: 0.75″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13lb. Radiator Cap included
(metric 14-1.5)
3-Row Core | 550hp Rating
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 18.5″ (19.75″ with cap) x 27.5″ (including brackets)
Core: 13.75″ tall x 23″ wide x 2″ thick
Tanks: 2.75″ thick
Inlet: 1.25″ drivers side
Outlet: 1.25″ passenger side (angled upward)
Tubes: 0.63″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (metric 14-1.5)
————————————————————————————————————————————-
Datsun 260Z (74-75) Radiator Combo Kit Specs:
3-Row Core | 550hp Rating
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 18.5″ (19.75″ with cap) x 27.5″ (including brackets)
Core: 13.75″ tall x 23″ wide x 2″ thick
Tanks: 2.75″ thick
Inlet: 1.25″ drivers side
Outlet: 1.25″ passenger side (angled upward)
Tubes: 0.63″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (metric 14-1.5)
————————————————————————————————————————————-
Datsun 280Z Radiator Combo Kit Specs:
2-Row Core | Cools up to 400hp
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 22.63″ (with cap) x 27.5″ (including brackets)
Core: 16″ tall x 24.25″ wide x 1.58″ thick
Inlet: 1.38″ drivers side
Outlet: 1.38″ passenger side
Tanks: 2.5″ thick
Tubes: 0.75″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
3-Row Core | Cools up to 650hp
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 22.63″ (with cap) x 27.5″ (including brackets)
Core: 16″ tall x 24.25″ wide x 2.25″ thick
Inlet: 1.38″ drivers side
Outlet: 1.38″ passenger side
Tanks: 2.5″ thick
Tubes: 0.63″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
————————————————————————————————————————————-
Datsun 280ZX Radiator Combo Kit Specs:
2-Row Core | Cools up to 400hp
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 22.63″ (with cap) x 27.5″ (including brackets)
Core: 16″ tall x 24.25″ wide x 2″ thick
Inlet: 1.38″ drivers side
Outlet: 1.38″ passenger side
Tanks: 2.5″ thick
Tubes: 0.75″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
3-Row Core | Cools up to 650hp
Fan Shroud and 2-11″ SPAL Medium Profile fans
Radiator Dimensions:
Total: 22.63″ (with cap) x 27.5″ (including brackets)
Core: 16″ tall x 24.25″ wide x 2″ thick
Inlet: 1.38″ drivers side
Outlet: 1.38″ passenger side
Tanks: 2.5″ thick
Tubes: 0.63″ thick
Total Thickness: 6.5 to back of fans, 5.75″ at center
Fan Thickness: 2.05
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
————————————————————————————————————————————-

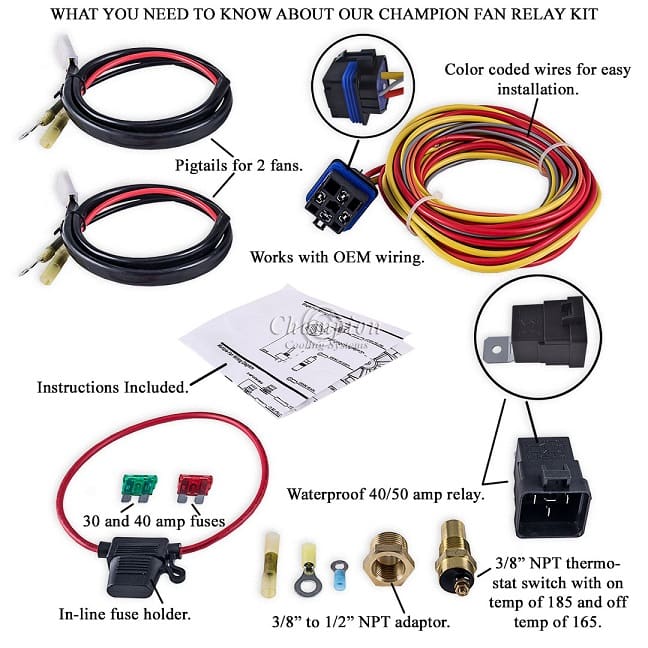

Dual Fan Relay Kit
Our Waterproof dual electric fan relay kit with thermostat turns your fans on when the temperature of the engine reaches 185° and off at 165°. Purchase this dual electric fan wiring kit today.
Make sure your engine has an available port on your intake manifold or heads. You can also get water necks with a 3/8″ NPT bung. Does not work with LS engins unless you just need the harness and relay, no spot for the sensor. Many 6 cyl engines do not have extra ports, in this case you will need the type of kit that has a probe to go into the core of the radiator.
Includes:
- Wiring Harness
- Waterproof Relay
- Sensor Switch 3/8″ NPT
- Inline fuse holder with 30amp and 40 amp fuses
- Brass adapter to fit larger ports (not shown, only available upon request)
- Two Pigtails
